Setting Up NetScout Manager Plus for FrameSaver Devices
8-6
9124-A2-LB20-00
March 2000
Correcting Domains and Groups
Properties need to be edited when not using the Paradyne-provided file and
when:
H An unsupported domain needs to be deleted.
H A missing domain needs to be added.
H Groups, Samples, Interval, and Logging are not configured as specified in
Step 3 of Verifying Domains and Groups.
" Procedure

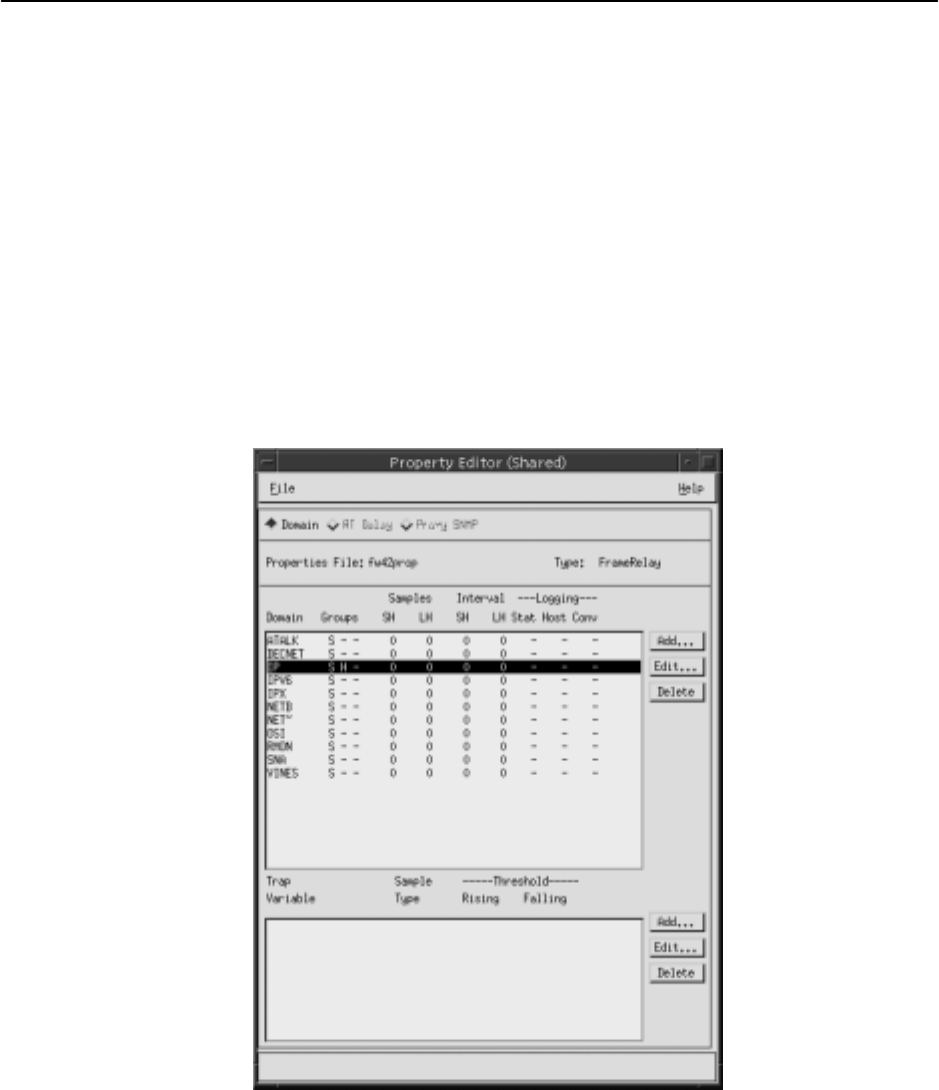

1. Select the the Property... button (down the center of the Configuration
Manager main window). The Property Editor window opens.
2. To delete an unsupported domain, click on the domain from the Domains list,
then select the Delete button.
The Are you sure? prompt appears. Select Yes. The unsupported domain
disappears from the list.
