Setting Up NetScout Manager Plus for FrameSaver Devices
8-19
9124-A2-LB20-00
March 2000
" Procedure
1. Select the Traffic radio button to monitor the newly added agent, or one of its
DLCIs.
2. Highlight an agent in the agent list box so that its DLCIs appear in the DLCI
list box (under the agent list box).
3. If you want to monitor one of the agent’s DLCIs, highlight the DLCI to be
monitored.
4. Click on an applicable icon. The selected graphical report should open.
Traffic icons that would be of particular interest are Traffic Monitor and

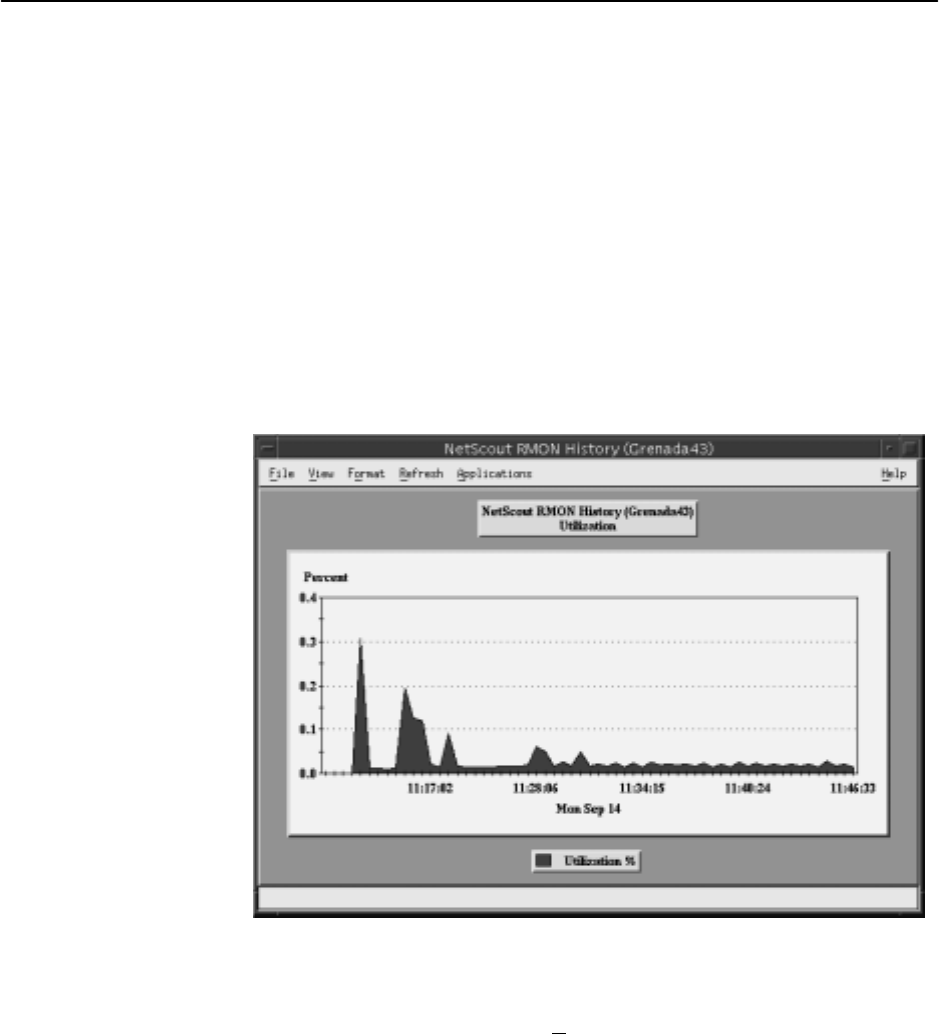

Domain History. In the example below, the Domain History icon was selected,
which is actually a real-time report.
NOTE:
If Size Distribution is the selected View and distribution size has been
changed via OpenLane, the values shown for the distribution will not be
accurate. Only default size distributions are tracked.
